12 August 2016

Lloyd Loom Paper Weaving Machine

Weaving Machine To Weave Lloyd Loom Paperyarn

Special made weaving machine for weaving of lloyd loom in paperyarn with or without steelwire inside.

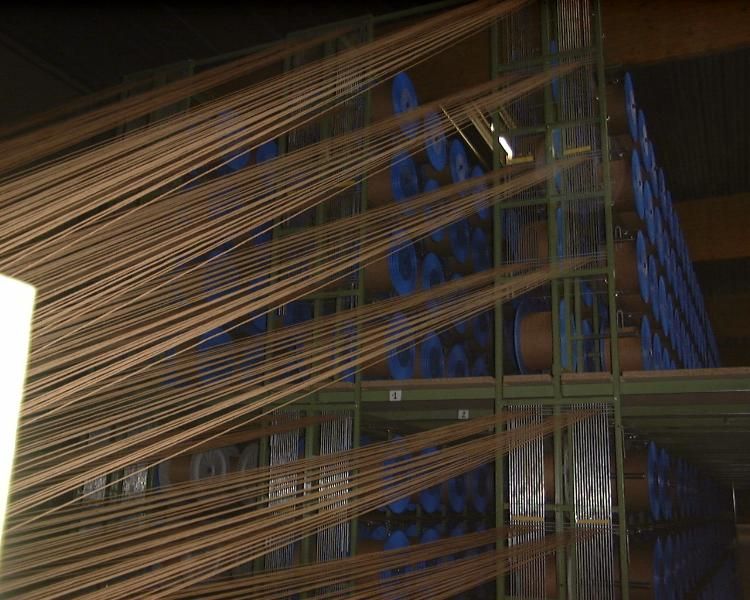

This lloyd loom paper weaving machine is equipped with a Construma weft accumulator with steel yarn straightener. Yarn accumulator and bobbin creel.

lloyd loom weaving machine


  • Can be equipped with jacquard for design paper weaving.
  • Has 2 groundshafts.
  • The weaving machine is strongly build and requires less maintenance.
  • Rapiers are driven by conjugated excenters with different timing profiles. This results in a high loomspeed and low yarn breakage.
  • Weaving yarn can be on beams, creel or both.
  • A flexible rapier is guided on the slay by means of rapierguides.
  • The pick up regulator is by motor.
  • Custom yarn accumulator
  • Available up to 5.6 m weaving width.
  • For industrial use. Price and delivery time depend on your requested specifications.

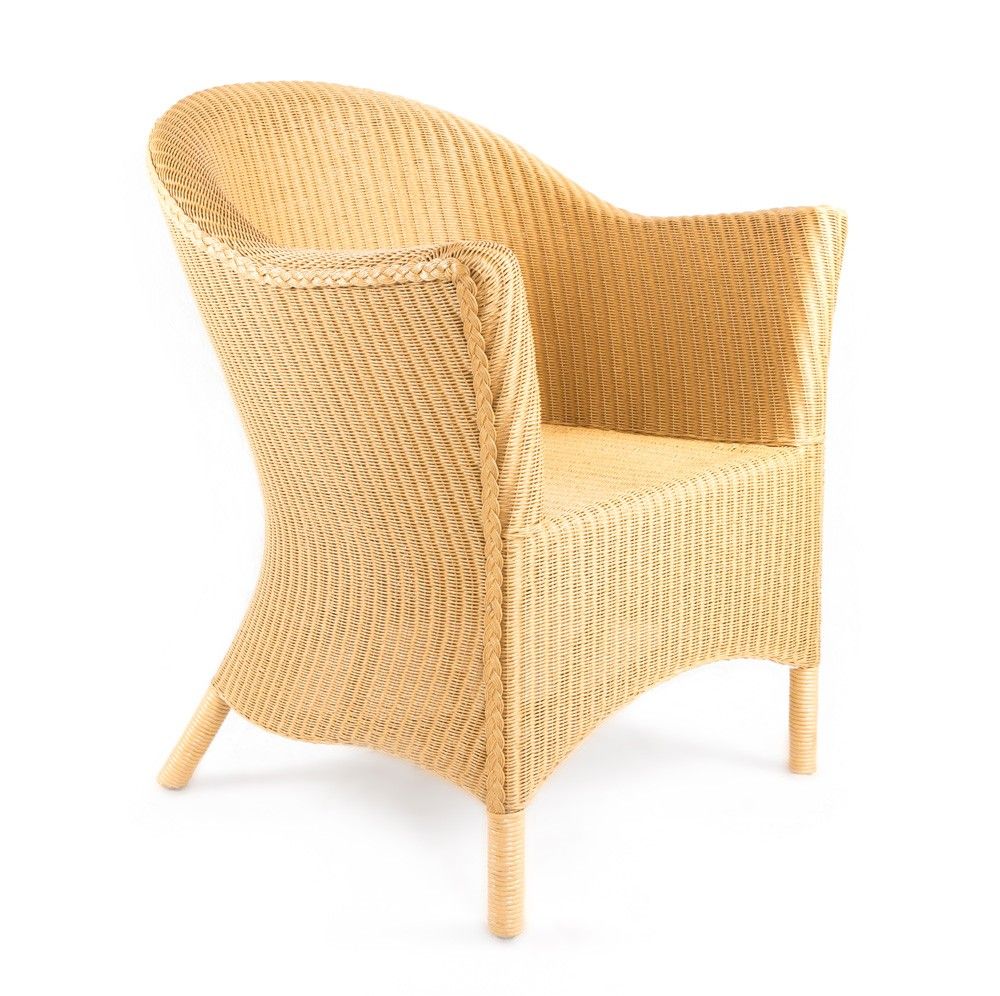

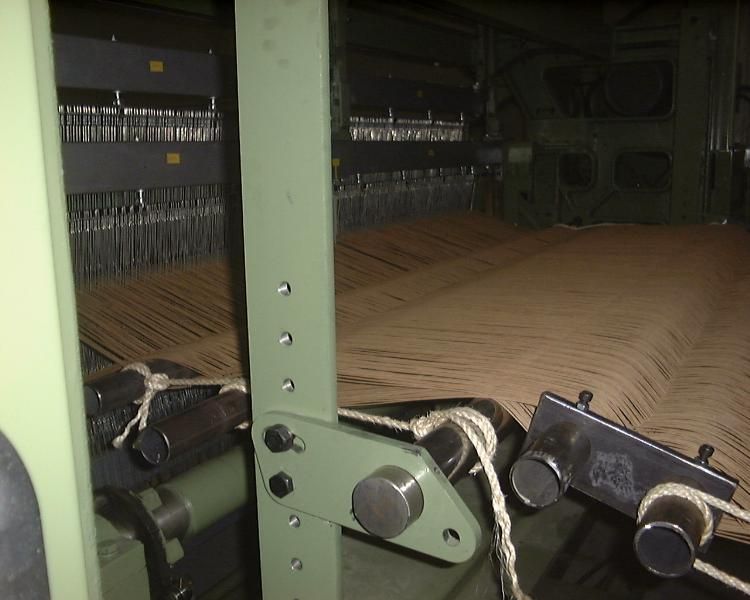

lloyd loom chairlloyd loom paper weaving machinelloyd loom paper weaving machine close up
